WCS WELDED CYLINDERS WITH SWIVEL BALL END MOUNTS

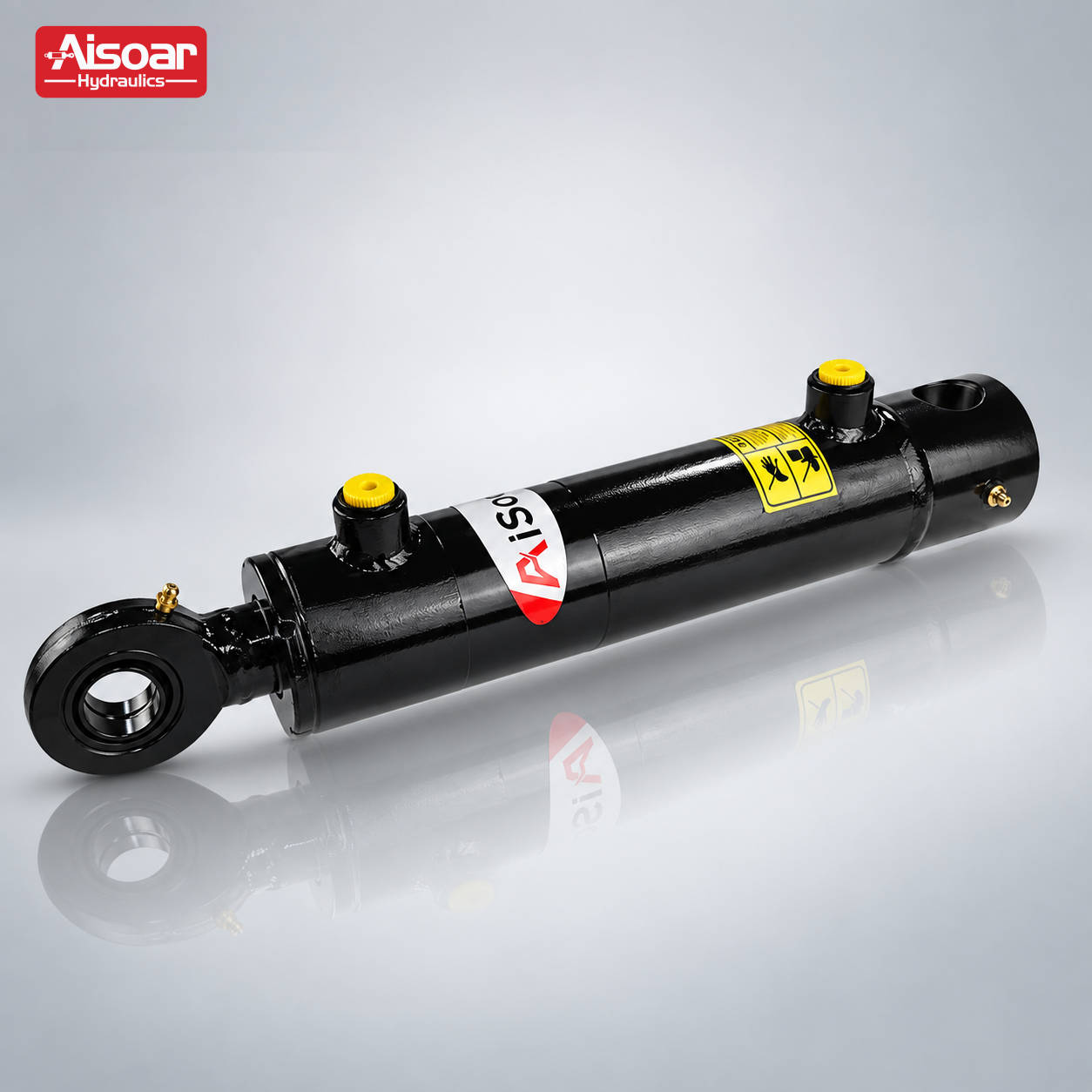

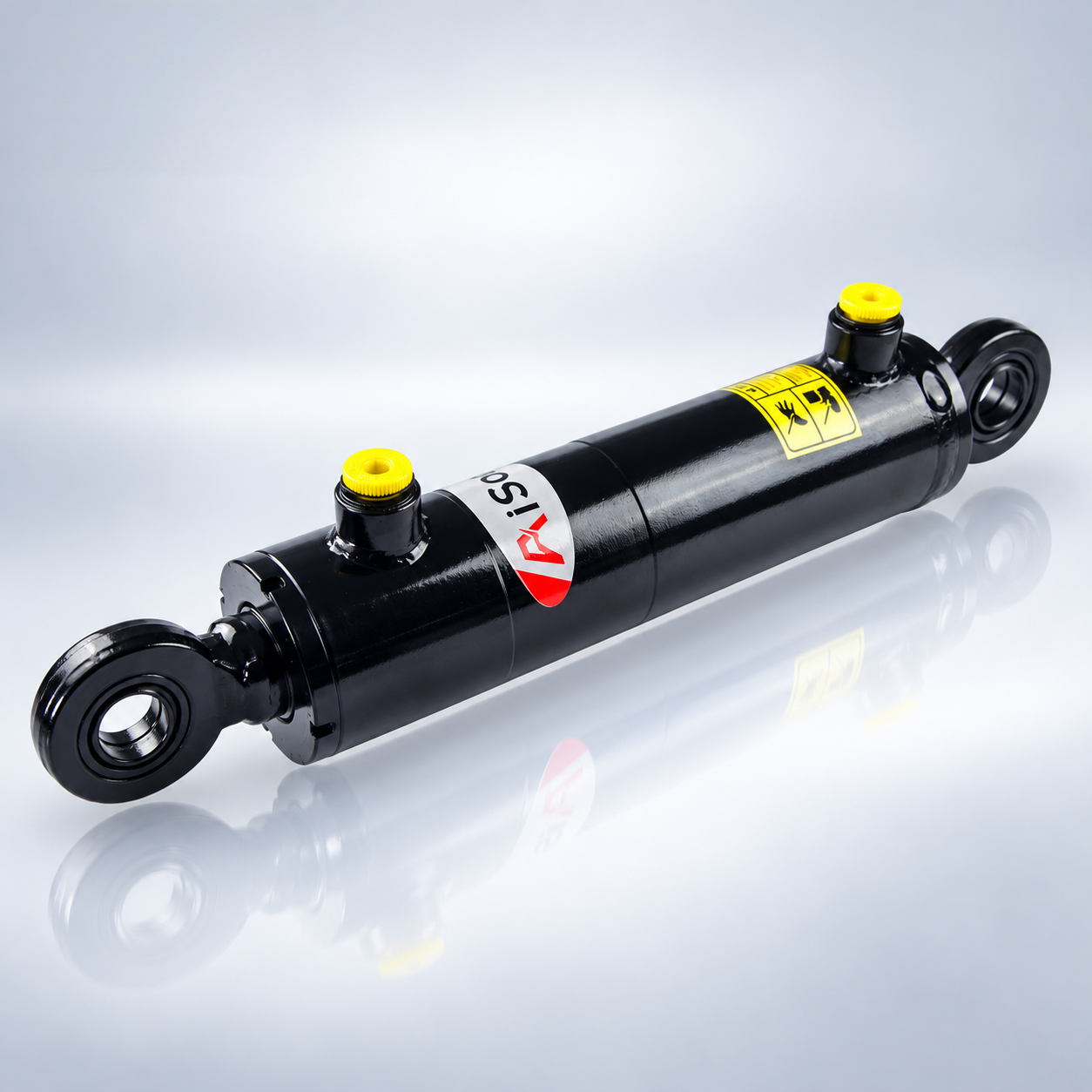

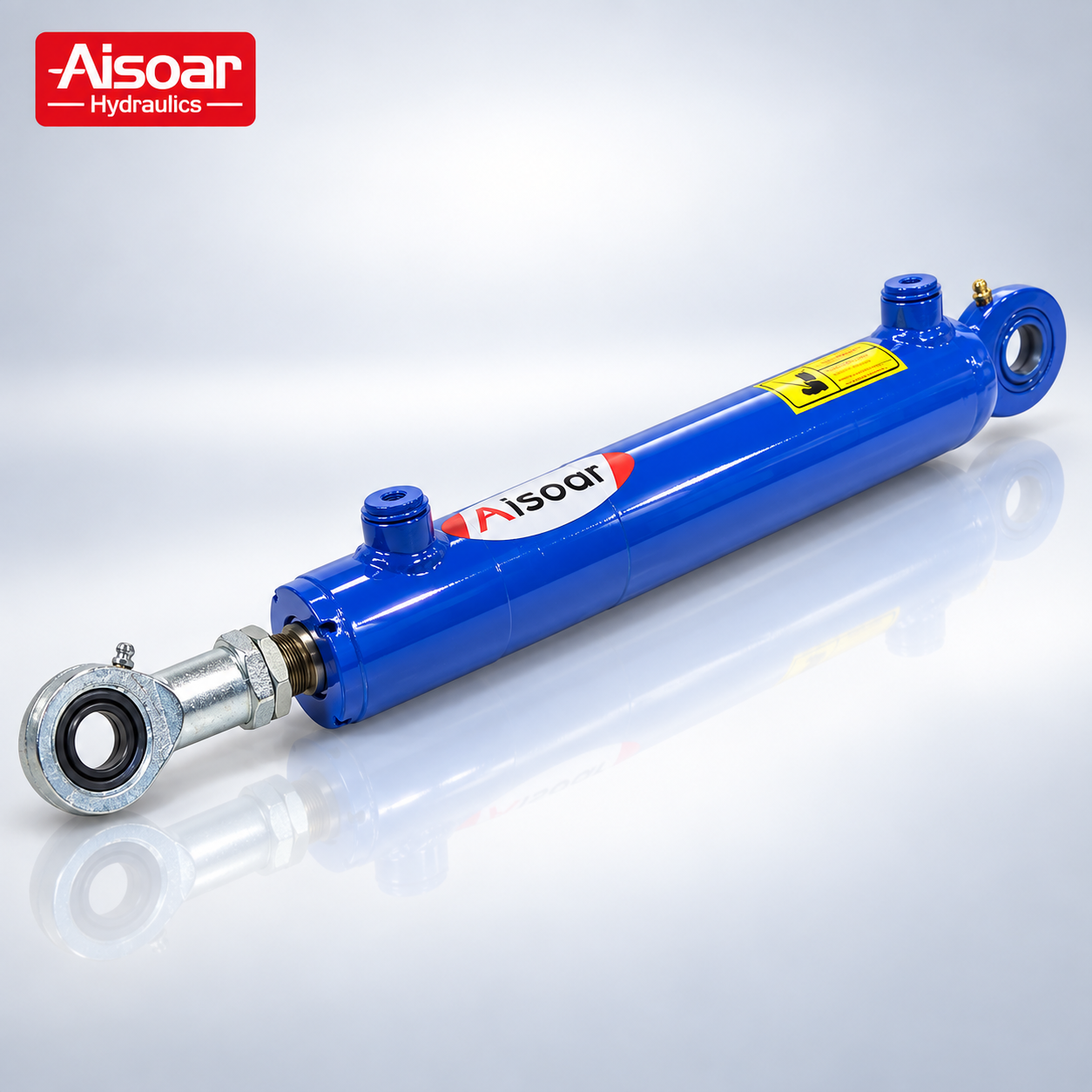

Aisoar Hydraulics supplies WCS series welded ball swivels for hydraulic cylinders. The rod and base ends are welded spherical, and the ball swivels from side to side, which allows a good deal of flexibility and is ideally suited for compact equipment.

Model:	WCS
PSI:	3000
Application:	Agricultural Equipment,Construction Equipment
Lead time:	3~6 weeks
Sample:	Available
Customized:	Available

WCS

WCS WELDED CYLINDERS WITH SWIVEL BALL END MOUNTS

Swivel Ball Hydraulic Cylinders Manufacturer

Detailed Drawing

Model Code System

WCS Hydraulic Cylinder

Discover the cutting-edge technology in hydraulic cylinders at Aisoar Hydraulics – introducing our WCS series with swivel ball end and spherical bearing. These welded hydraulic cylinders are engineered for optimal flexibility and endurance, making them perfect for compact equipment that demands high performance and reliability.

Welded swivels eye hydraulic cylinders material:

This durable cylinder is designed with a steel base end, rod end, gland, and piston rod for resistance to wear. AiSoar Hydraulics implements rigid quality control on raw materials as well. We have really stable suppliers with long-term cooperative relationships. We inspect each batch of incoming goods and review our supplier’s quality performance by year.

Welded swivels Eye hydraulic cylinders characteristics:

Advanced Swivel Eye and Spherical Bearing for Superior Flexibility:

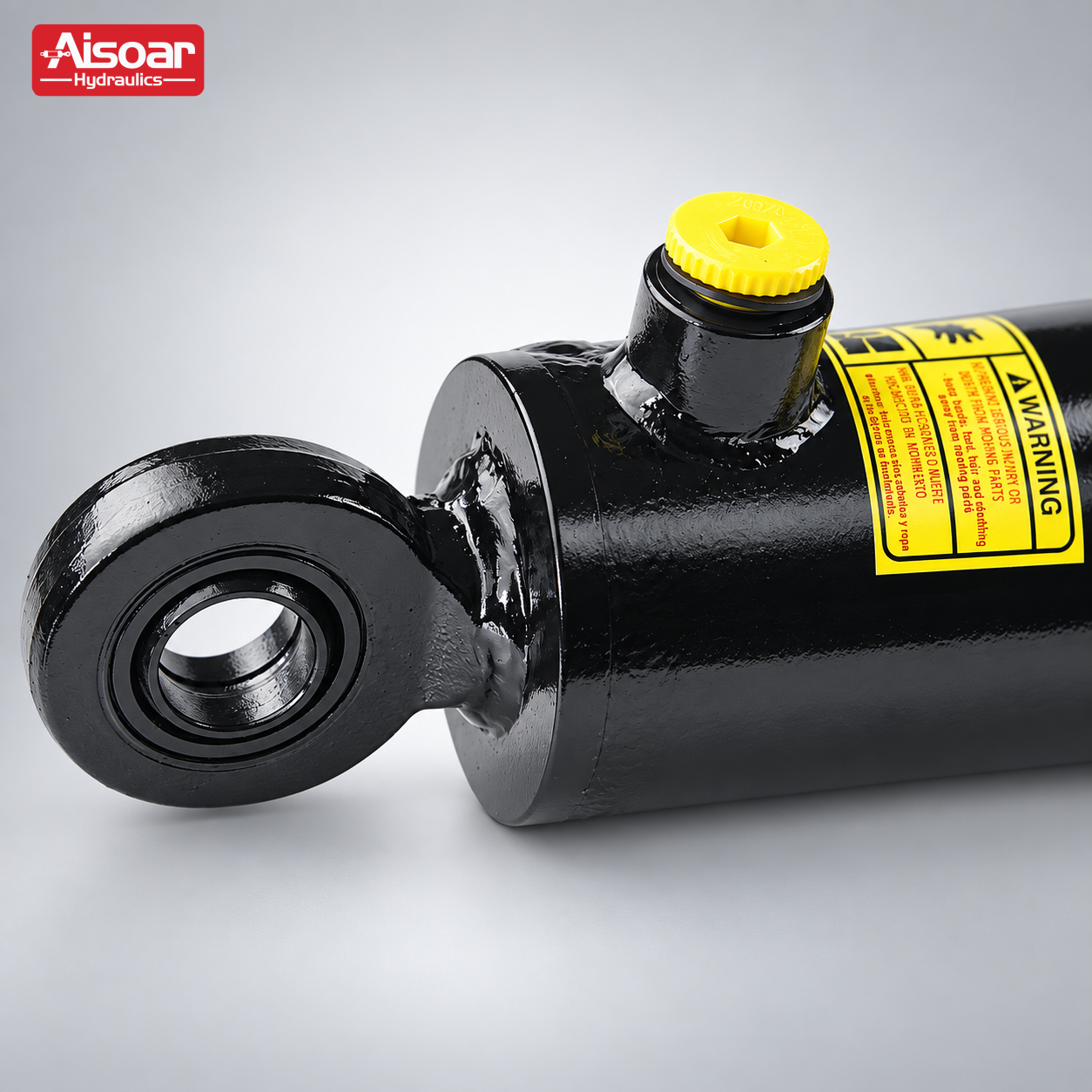

Our WCS hydraulic cylinders are equipped with a swivel eye design and spherical bearings at both the rod and base ends. This innovative feature allows for a wide range of motion, providing unparalleled flexibility in various applications and ensuring smooth operation even in the most demanding conditions.

Robust Construction for Enhanced Durability:

Crafted with a steel base, rod end, gland, and piston rod, these hydraulic cylinders offer exceptional resistance to wear and tear. The sturdy design ensures long-term durability, especially suited for heavy-duty industrial use.

Stringent Quality Control for Peak Performance:
At Aisoar Hydraulics, we are committed to delivering products of the highest quality. Our rigorous inspection process for incoming materials, coupled with our long-term relationships with trusted suppliers, ensures that each WCS hydraulic cylinder with swivel ball end and spherical bearing meets the strictest quality standards.

Welded swivels Eye Hydraulic Cylinders Application:

The WCS series welded ball swivels hydraulic cylinders excel in diverse settings, from construction to manufacturing. Their swivel ball end and spherical bearing offer unparalleled flexibility and strength, making them ideal for compact equipment in high-pressure environments and a variety of industrial and agricultural applications.

WCS Hydraulic Cylinder Drawing

We can check the main sizes in below drawing

Dimensional Data in Inches (Milimeters)
BORE	A	B	C	D	E	G	N	R	S
1.000 (25.4)	6.299 (160)	0.200 (5.08)	1/4NPT	0.630 (16.0)	0.394 (10)	0.394 (10)	1.063 (27)	0.472 (12)	1.000 (34)
1.500 (38.1)	7.48 (190)	0.200 (5.08)	1/4NPT	1.000 (25.4)	0.63 (16)	0.63 (16)	1.496 (38)	0.787 (20)	1.500 (53)
2.000 (50.8)	8.8 (223.52)	0.25 (6.35)	3/8NPT	1.250 (31.75)	0.787 (20)	0.787 (20)	1.7725 (45)	0.984 (25)	2.000 (64)
2.500 (63.5)	8.8 (223.52)	0.25 (6.35)	3/8NPT	1.500 (38.1)	0.787 (20)	0.787 (20)	1.772 (45)	0.984 (25)	2.500 (64)
3.000 (76.2)	9.2 (233.68)	0.25 (6.35)	1/2NPT	1.500 (38.1)	0.787 (20)	0.787 (20)	1.772 (45)	0.984 (25)	3.000 (64)

Data Table

Here we can see importants dimensional datas for WCS cylinders

ARTICLE	BORE INCH	STROKE INCH	ROD DIA INCH	LENGTH MIN INCH	LENGTH MAX INCH	PORT	WEIGHT LBS	WEIGHT KG
WCS 1004-062	1	4	0.625	10.299	14.299	1/4NPT	5	2.3
WCS 1006-062	1	6	0.625	12.299	18.299	1/4NPT	5	2.3
WCS 1008-062	1	8	0.625	14.299	22.299	1/4NPT	6	2.7
WCS 1010-062	1	10	0.625	16.299	26.299	1/4NPT	7	3.2
WCS 1012-062	1	12	0.625	18.299	30.299	1/4NPT	7	3.2
WCS 1504-100	1.5	4	1	11.48	15.48	1/4NPT	6	2.7
WCS 1506-100	1.5	6	1	13.48	19.48	1/4NPT	7	3.2
WCS 1508-100	1.5	8	1	15.48	23.48	1/4NPT	9	4.1
WCS 1510-100	1.5	10	1	17.48	27.48	1/4NPT	10	4.5
WCS 1512-100	1.5	12	1	19.48	31.48	1/4NPT	11	5
WCS 1514-100	1.5	14	1	21.48	35.48	1/4NPT	12	5.4
WCS 2006-125	2	6	1.1/4	14.8	20.8	3/8NPT	15	6.8
WCS 2008-125	2	8	1.1/4	16.8	24.8	3/8NPT	16	7.3
WCS 2010-125	2	10	1.1/4	18.8	28.8	3/8NPT	17	7.7
WCS 2012-125	2	12	1.1/4	20.8	32.8	3/8NPT	19	8.6
WCS 2020-125	2	20	1.1/4	28.8	48.8	3/8NPT	24	10.9
WCS 2024-125	2	24	1.1/4	32.8	56.8	3/8NPT	27	12.2
WCS 2030-125	2	30	1.1/4	38.8	68.8	3/8NPT	32	14.5
WCS 2036-125	2	36	1.1/4	44.8	80.8	3/8NPT	43	19.5
WCS 2506-150	2.5	6	1.1/2	14.8	20.8	3/8NPT	17	7.7
WCS 2508-150	2.5	8	1.1/2	16.8	24.8	3/8NPT	19	8.6
WCS 2510-150	2.5	10	1.1/2	18.8	28.8	3/8NPT	21	9.5
WCS 2512-150	2.5	12	1.1/2	20.8	32.8	3/8NPT	23	10.4
WCS 2520-150	2.5	20	1.1/2	28.8	48.8	3/8NPT	30	13.6
WCS 2524-150	2.5	24	1.1/2	32.8	56.8	3/8NPT	34	15.4
WCS 2530-150	2.5	30	1.1/2	38.8	68.8	3/8NPT	41	18.6
WCS 2536-150	2.5	36	1.1/2	44.8	80.8	3/8NPT	58	26.3
WCS 3008-150	3	8	1.1/2	16.8	24.8	1/2NPT	22	10
WCS 3010-150	3	10	1.1/2	18.8	28.8	1/2NPT	24	10.9
WCS 3012-150	3	12	1.1/2	20.8	32.8	1/2NPT	26	11.8
WCS 3020-150	3	20	1.1/2	28.8	48.8	1/2NPT	36	16.3
WCS 3024-150	3	24	1.1/2	32.8	56.8	1/2NPT	41	18.6
WCS 3030-150	3	30	1.1/2	38.8	68.8	1/2NPT	52	23.5
WCS 3036-150	3	36	1.1/2	44.8	80.8	1/2NPT	60	27.2

Get Your WCS Hydraulic Cylinders Today!

Call us or visit our website to get more information about the hydraulic cylinders you need.

Material

We Always Use Good Quality Material For Our WCS Cylinders

ROD:Hard chrome plated
TUBE:Precision honed steel for extended seal life.
GLAND:Ductile Iron, drilled oil passages.
PISTON:SDuctile iron.
END MOUNTS:Spherical Bearings With Grease Zerk
PORTS:NPT, NPTF&SAE is available
SEALS:Taiwan DZ/ Hallite
PAINT:black, custom colors are available.
ROD ENDS:Spherical Bearings With Grease Zerk

How We Produce WCS Hydraulic Cylinders

Production Processes

Machining

Machined by turning and milling compound centers of Mazac and Dawei, the tolerance and accuracy of each parts will be good and stable.

Cleaning

Each parts of the cylinder, will be cleaned by Ultrasonic cleaner.

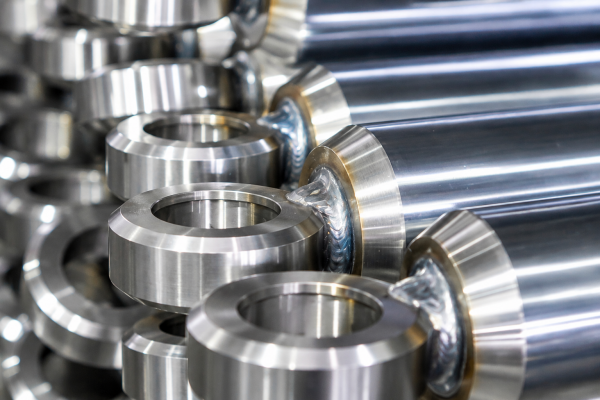

Welding

Welded by automatic welding machines and mechanical arm, results our good welding quality.

Assembling

1.The gland, which holds pressure seals and supports the rod while it moves.
2.The seals, which are fitted to the gland to stop leakage and external contamination.
3.The gland is fitted to the rod.
4.The piston is then fitted to the end of the rod.
5.A locking nut is used to hold the piston in place.
6.Piston seals are fitted to the piston to crest a seal against the cylinder wall in both single -acting and double-acting applications.
7.Position the end cap and the port for welding onto the cylinder.
8.The fully assembled rod is then inserted into the cylinder.
9.With assembly complete, the hydraulic cylinder is now ready for use.

Inspecting

Various precision inspection equipment is applied in the quality control, so we have 100% detection capability and traceability.

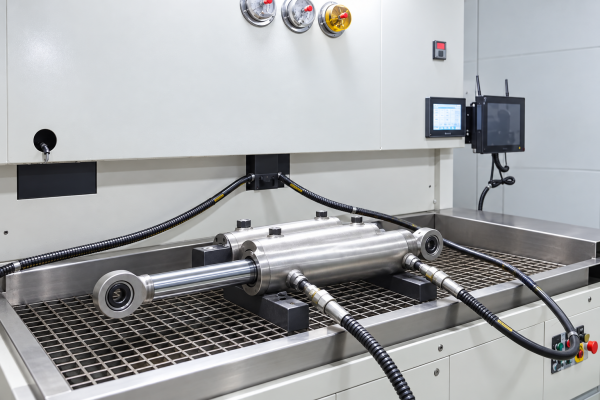

Testing

1.The Salty Testing Machine test the chrome plated rod and to see the capacity for the anti-corrosion performance.

2.Making the 72 or 96 hours for the testing, we can make it longer according to customers special requirement.

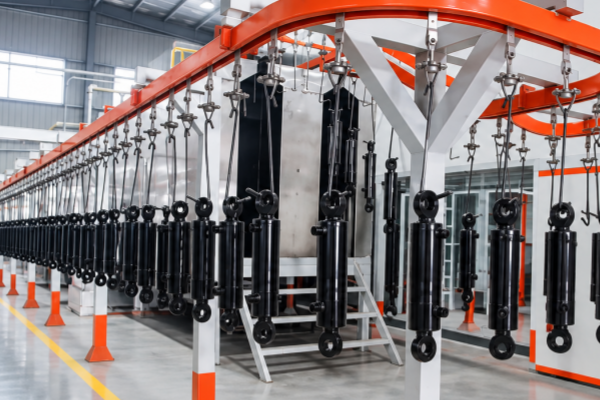

Painting

1.Painting the undercoat, normally it takes one day to dry.

2. Painting the finish painting.

We have our own standard painting color, and thickness of painting is 40 microns.

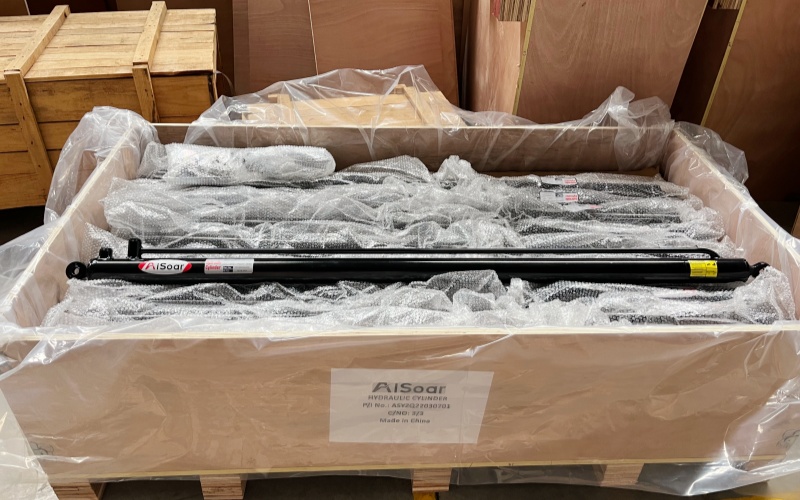

Package

Bubble bag + Wooden case(by default), Carton box is optional.

Our Factory

OEM Custom Service is Available

What Kind Of Cylinders Do You Need?

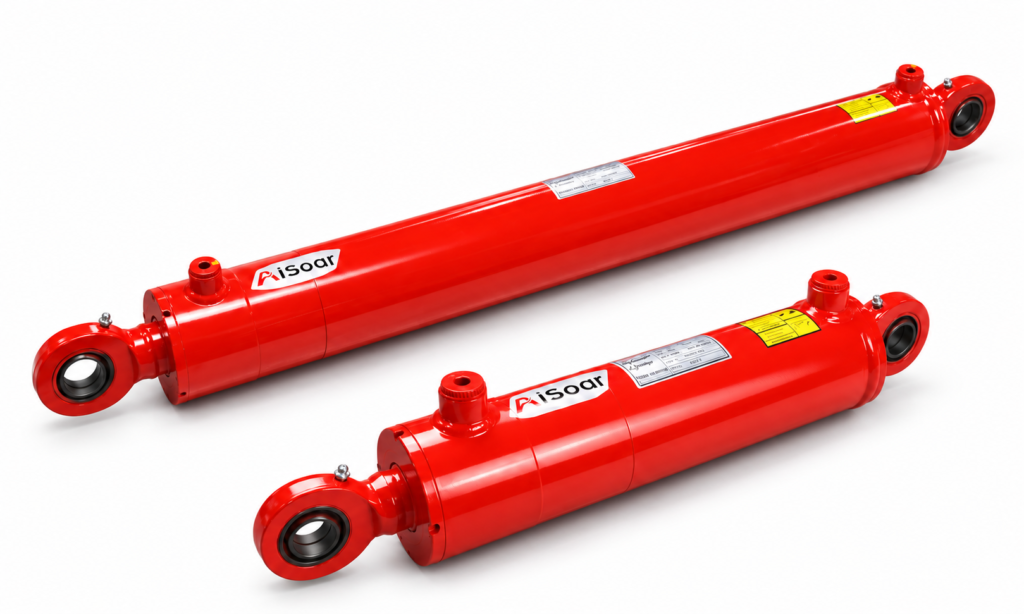

Custom swivel ball hydraulic cylinders are designed for applications where slight misalignment, angular movement, or dynamic mounting conditions are common. The swivel ball end connection helps reduce side-load stress, improving cylinder life and overall equipment reliability.

Key Features

Custom Swivel Ball Hydraulic Cylinders Manufacturer

Swivel ball mounting for better alignment flexibility
Reduced side-load impact on rod and seals
Smooth articulation in oscillating or pivoting mechanisms
Custom bore and stroke to match force and travel needs
Multiple seal options for high-pressure or harsh environments

Customization Options

Bore size and stroke length

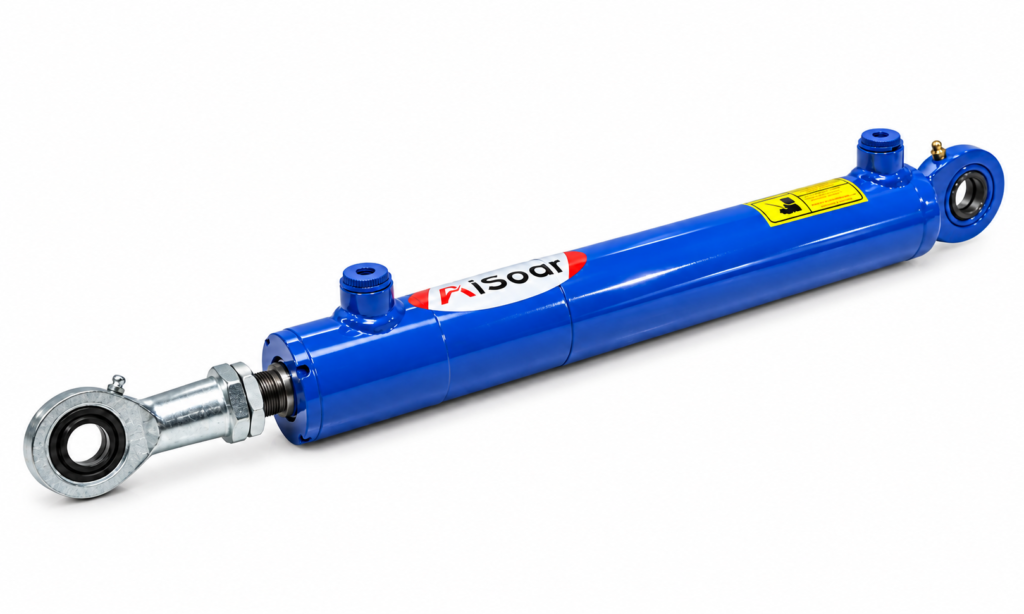

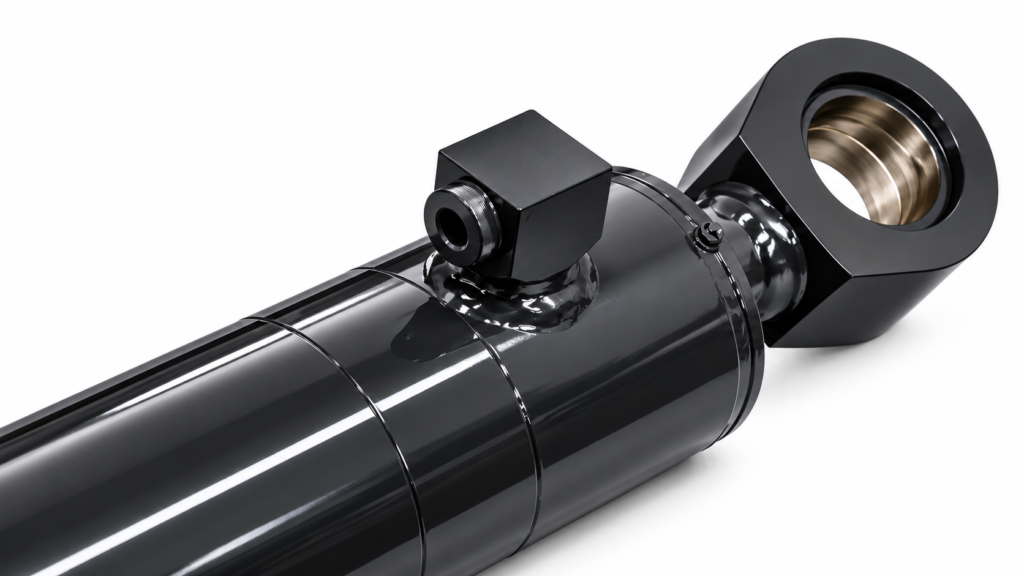

Rod diameter and end type
Mounting dimensions
Working pressure range

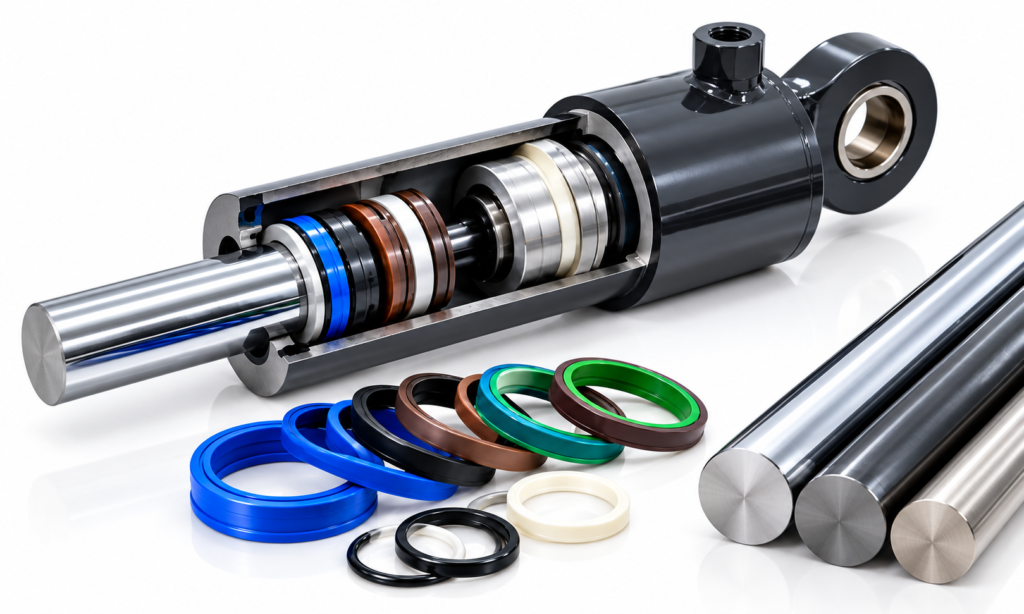

Seal material (NBR, PU, Viton, etc.)
Surface treatment and paint specification

FAQ

Frequently Asked Questions

We’ll try to answer some of your questions

A: Yes, closed length from center pin to center pin, we also call out retracted length or min. length. Open length is the retracted on centers plus the stroke, we also call out extended length or max. length.

A: Measured in between pin hole centers. We would like to show you videos via WhatsApp or Wechat.

A: Technically yes, however it depends on the type of log splitter you have. You need to see the type of attachment on your splitter and advice the bore size and stroke.

A: It’s a good question. TR2008 and WCC2008, same bore size, same stroke, same retracted length, same pin size, similar clevis. You can see the difference as below pictures. There are two oil ports on cap of TR serial, and only one oil port on cap of WCC serial. The shape size of WCC serial is smaller, as it no needs to be welded tie rods.

You can confidently utilize equipment with AiSoar hydraulics year after year for four reasons:

1. AiSoar Hydraulics provides value without sacrificing quality. When implementing rigid quality standards and controlling raw materials, the key to cost control for us is standard and large-scale production.

2. We take care of our cylinders like our children. Before assembly, we clean all the parts through a high-pressure cleaning machine, and we flush before testing. Each cylinder would go through the testing procedure before packaging to make sure there was no internal or external seal leakage. Painted with primer first before the main paint to make sure the cylinders look perfect.

3. Short-run production for customized cylinders, even just at 1 pc, is fully supported.

4. We have launched a 3D Drawing Gallery, where you can get access to 3D drawings for WCC cylinders.

Aisoar Hydraulic Cylinders Catalogue

AiSoar hydraulics offers WCS series of welded hydraulic cylinders with cross tube mounted both rod ends and cap, available in a variety of bore and stroke sizes. As a standard type, cylinders’ bore sizes up to 4 inches, strokes up to 48 inches with pressure ratings up to 3000PSI. For WCT series cylinders, non-standard options are available, such as customized stroke, integrated valve and stainless steel tube/rod. Single acting is optional, too.
